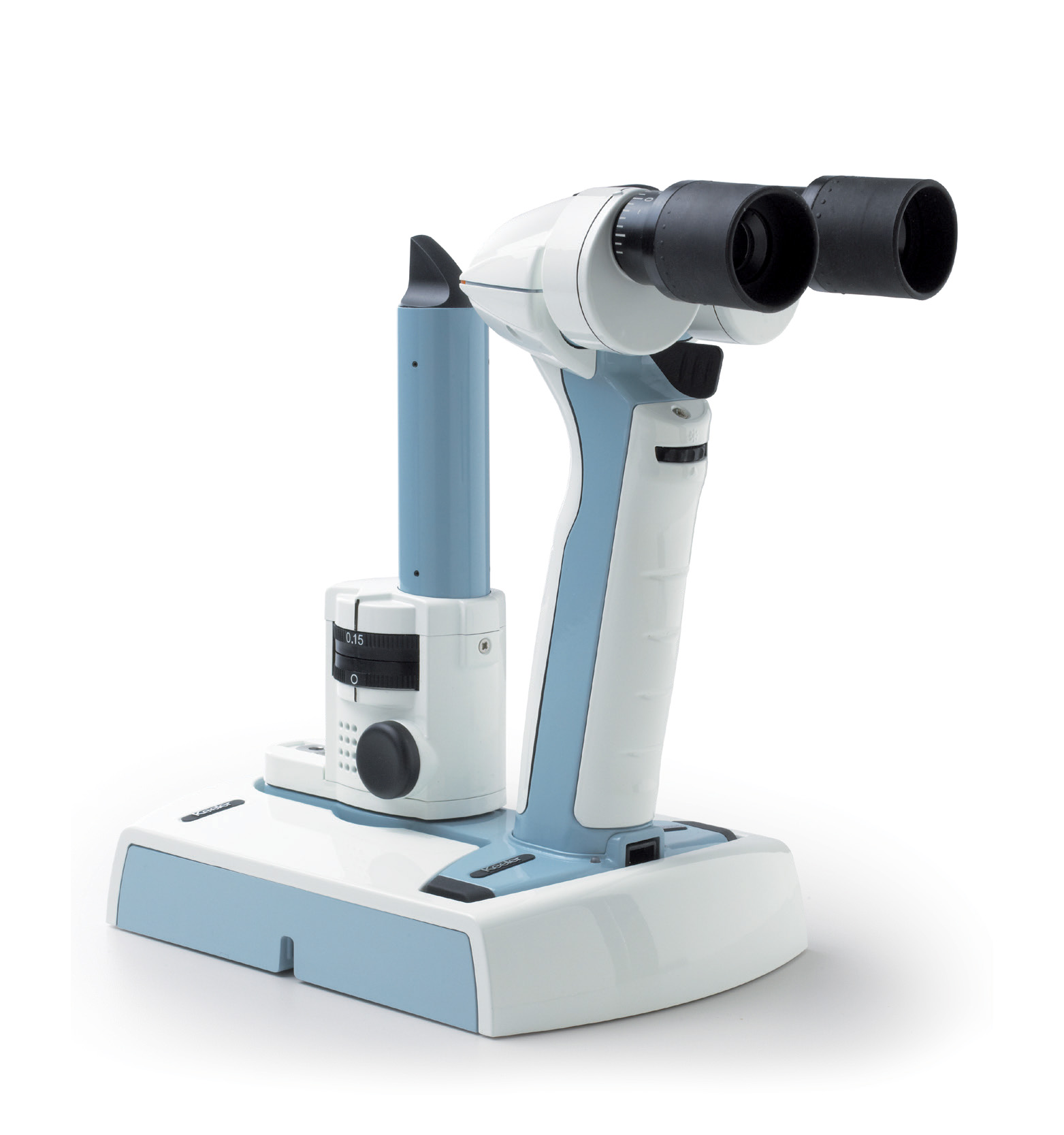

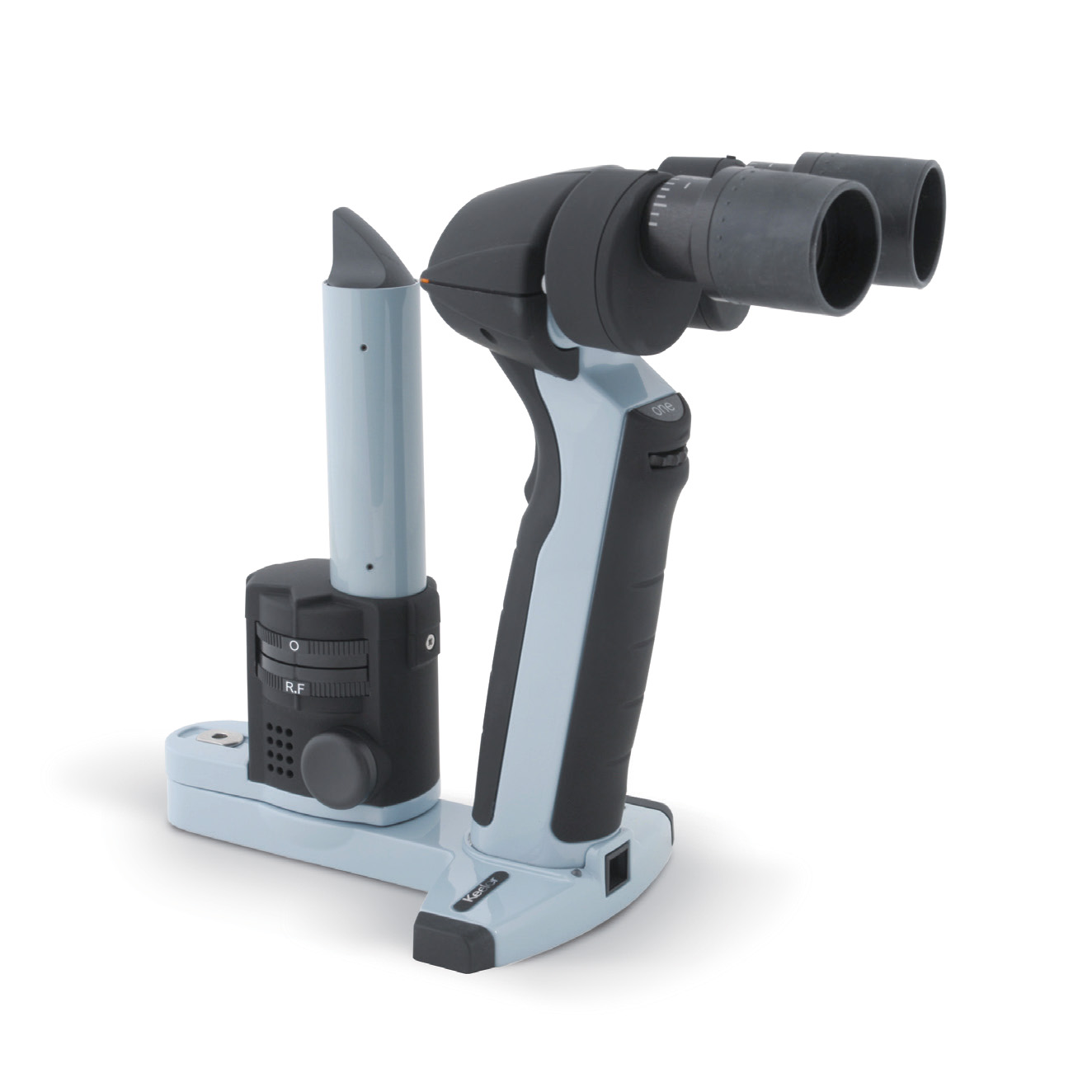

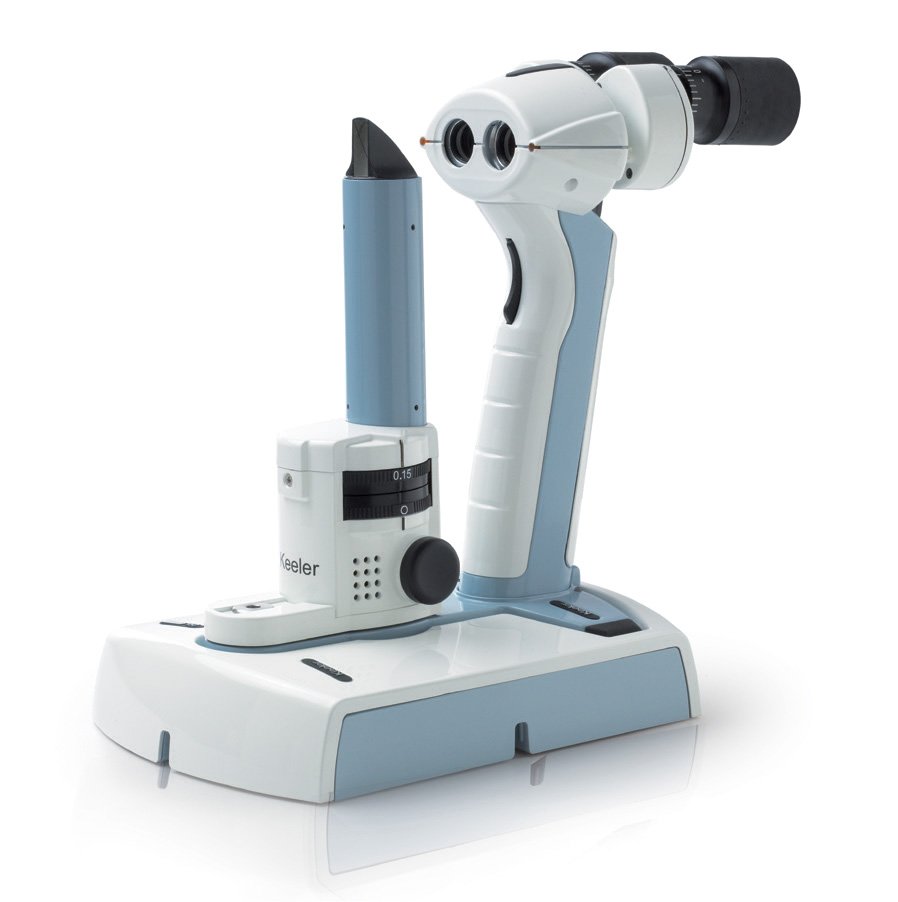

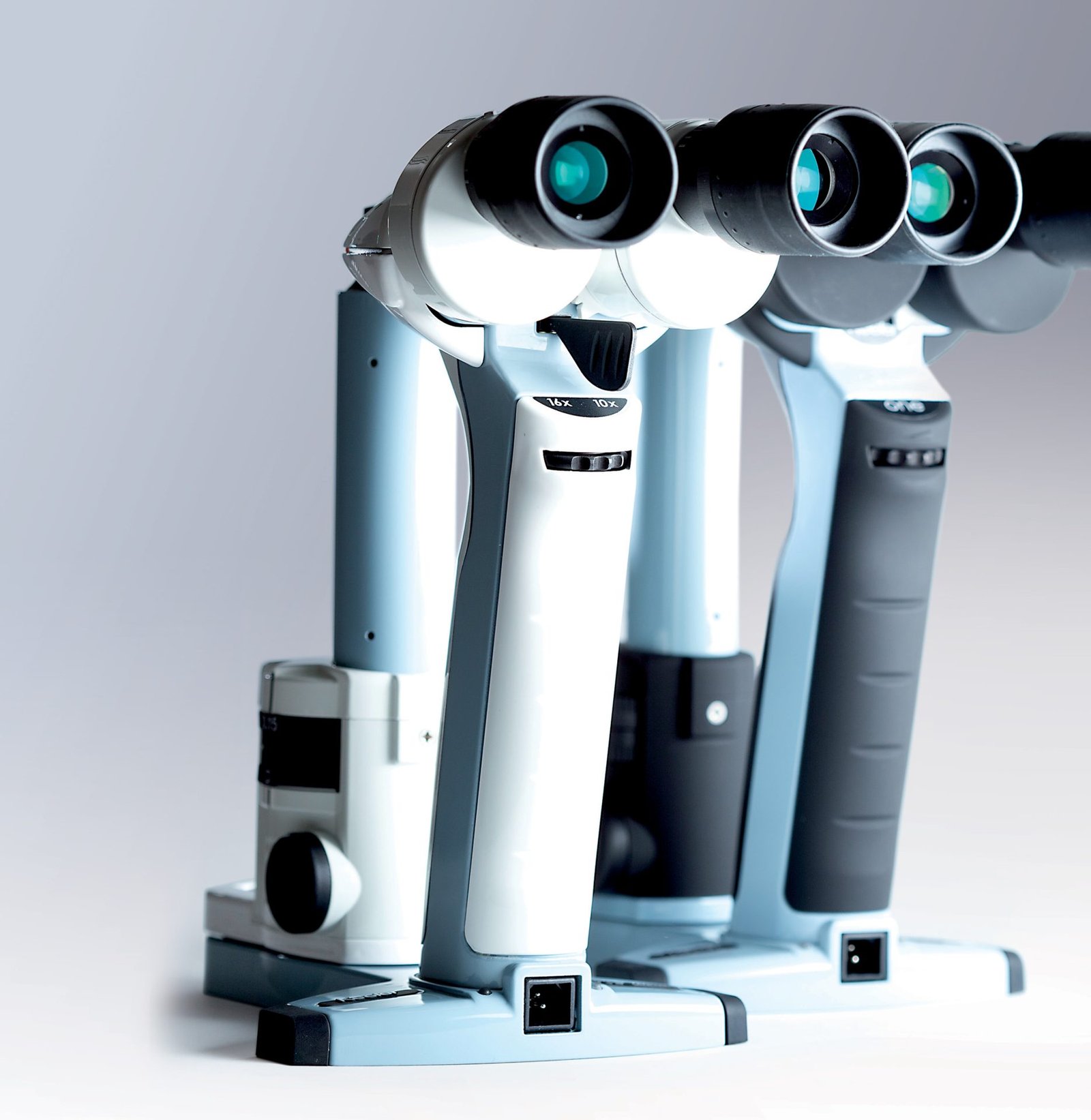

PSL one and PSL Classic
Hand-held and Portable Slit Lamps
Specifications
PSL Slit and Filter System
SLIT TYPE Rotating Slit wheel selection Slit Lamp
SLIT LENGTH 12mm
SLIT ANGLE +/– 60º
FIXATION
TARGETS LED system, double click of trigger
Biomicroscope
TYPE
Binocular Hand held
Biomicroscope Slit Lamp
OPTICS Converging binoculars at 13˚
MAGNIFICATION
PSL one: 10x fixed
PSL Classic: 10x and 16x, lever change
OBJECTIVE LENS WORKING DISTANCE:
@ 10x
@ 16x
100mm (PSL one, PSL Classic)
80mm (PSL Classic)
FIELD OF VIEW:
@ 10x
@ 16x
16mm (PSL one, PSL Classic)
10.5mm (PSL Classic)
EYEPIECE DIOPTRIC ADJUSTMENT RANGE: +/- 7 Dioptres
Weight and Dimensions
HAND HELD
DEVICE ~900g, 238 x 116 x 210 mm
DOCKING
STATION 300g, 205 x 138 x 40 mm
Power Supply
POWER SUPPLY
UNIT
Switch mode, (110V – 240V)
10% multi-plug
OUTPUT 30VA (12V DC 2.5A)
